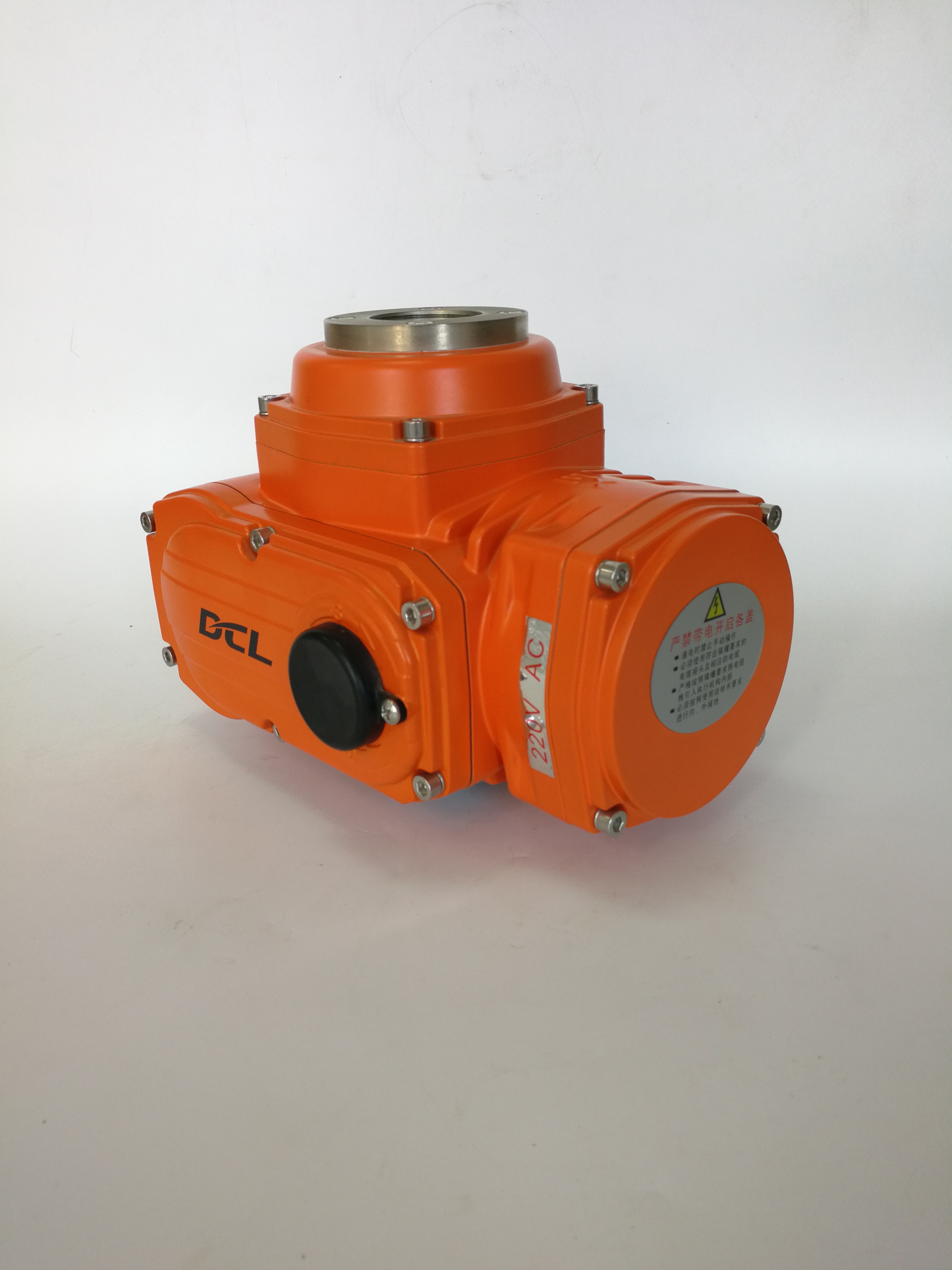

Durable Die-Cast Aluminum 600Nm IP67 Explosion-Proof Actuator

Features

• Quarter turn operation with mechanical limits
• Cylinder stop type connection surfaces of very housing cover, flame proof gap and length complied to UL and CSA standard
• Class 1 Zone 1 AExdIICT4 grade and Class 1 Division 1, Group C, D T4.
• Double lip skeleton oil seal and O-ring seal to ensure protection grade to waterproof IP68.
• Hard die cast aluminum alloy enclosure to ensure actuator's resistance of high explosion pressure(＞2.2 MPa).
• Non-ventilated motor with fire treatment and thermal overload protection
• Manual override with Allen wrench and handwheel
• ISO5211 multi flange mounting
• CSA certification in process per UL standard/ATEX marked

Description

DCL fire-safe compact electric actuators can be powered by a wide range of voltages, including 24VDC, 24VAC, 110VAC, 220VAC, 380VAC, and 440VAC. The integrated design combining the motor, housing, and control module makes DCL explosion-proof actuators the most compact models within their torque range.

The machining accuracy of the enclosure is 100% inspected and precisely controlled by DCL to ensure maximum safety in the event of an explosion. Each actuator also undergoes a full underwater sealing test to verify protection levels of IP68 and NEMA 7.

All DCL actuators are rigorously tested and certified by CSA according to UL and CSA standards. CSA certification for both Zone and Division systems is expected in Q4 2020, and the product has been ATEX certified by an EU-authorized certification body.

Specification
